5 or 20kg

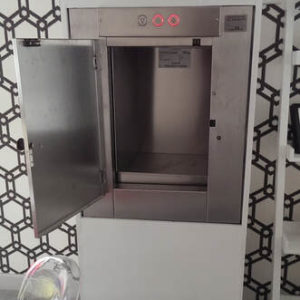

Residential Dumbwaiter Small S

Small S Model

Our smallest Residential Dumbwaiter, with a car size of 250mm wide x 310mm deep x 500mm high and either 5 or 20 Kg capacity. It is designed to fit into the smallest space of 540 x 420. The motor is at the bottom of the shaft, so it is perfect when the top floor headroom is less than 2000mm. Originally designed and used as a document lift, this models' reliability has been well proven over the years and now due to rising demand for dumbwaiters inside the home, it is proving very popular when available space is at a bare minimum.

20kg

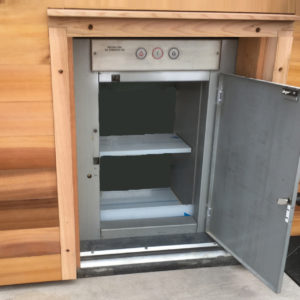

Small L Model

Small L Model

This Residential Dumbwaiter has a car size of 350mm wide x 500mm deep x 500mm high and 20 Kg capacity. It is designed to fit into a space of 640mm x 610mm. For use when the top floor headroom is less than the 2200mm needed for the standard motor at the top models. It has proven design quality and reliability and comes in primed painted finish for you to have painted to match your decor, galvanised or stainless steel, or a match of all. We would always recommend the standard motor at the top dumbwaiter, however, when space and limited headroom is at at a minimum, this is the perfect solution.

50-100kg

​​400 Dumbwaiter Model

German designed and manufactured, available as front, front and rear or front and side door entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 30m / 10 floors. 240 volt or 3-phase 400 volt supply. Car and landing finishes in primed painted for you to paint to match your décor, galvanised steel or stainless steel. We also offer glass doors and fully automatic doors.

Options include: Car roller shutter, extra shelves, car heated lift, motor room doors.  Car Sizes: 400mm  wide x 400mm  deep x 80mm high.  Automatic landing push buttons, car position indicator, lift in use indicator and door open signal, Lift arrival buzzers. Compliance with EC Machinery Regulations 2006/42/EC and EN81- 3:2000.

EC Machinery Regs 2006/42/EC and EN81-3:2000​​

50-100kg

Advantage S Model

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks.

Car Size: Width 460mm X Depth 560mm X Height 800mm

Shaft Width 750mm X Shaft Depth 750mm

50-100kg

Advantage L Model

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks.

Car Size: Width 710mm X Depth 820mm X Height 800mm
Shaft Width 1000mm X Shaft Depth 1000mm

Residential Dumbwaiters

There are a number of standard dumbwaiter lift models available, however we are seeing a growing number of bespoke dumbwaiter requests which is no surprise as such luxury private homes deserve something tailored to the often stunning interior designs. Here at Service Lifts, we understand the premium market better than other Service Lift providers and offer products which are of world class quality and finishes. Just a few things we have recently been asked for include: Glass lift doors: LED lift interior lighting: Special RAL finishes on the lift doors and door frame surrounds: Automatic opening and closing doors.

We work with architects and all types of design teams and also deal directly with the hands on home owner who loves to get stuck in and specify the residential dumbwaiter of their dreams and desires. It should not be underestimated how important the lift can be in terms of its function, style and finish. Many clients have benefited from our bespoke service lifts.

Not seen what you need? We can only display a fraction of our true potential on the website, we are more than happy to go through the options that we can offer that are unrivalled by our competitors. So get in touch and let us work together with you or your architect or designer!

When considering a dumbwaiter in your home, as most lifts have the motor at the top of the lift structure, the top floor room height is important. If you have 2200/2300mm or more, no problem, if you don’t, you will either have to have to have a lower than average top floor door height or a bottom drive model.

A top drive model is the cheapest, most reliable and best option. A hole though the ceiling is all we need, the lift is then fitted in its own self supporting structure in 1 day, then your builder will box it in, to your décor choice.

A normal home residential dumbwaiter will only take 8 seconds to get from floor to floor. Load capacity, length of travel, speed, number of stops, car dimensions, loading, entrance type, finishes etc can all be varied to customize the lift to match your requirements. Special models are available to make maximum use of a limited footprint.
