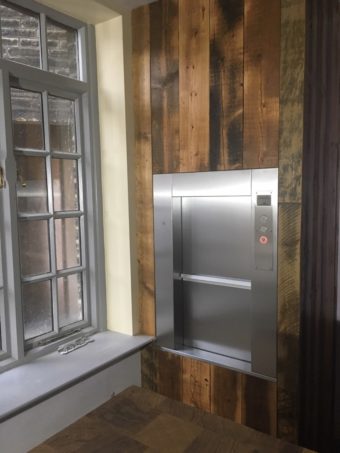

BKG Advantage L Stock Dumbwaiter

50kg & 100kg

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating. Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks. Car Size: Width 460mm X Depth 560mm X Height 800mm Shaft Width 750mm X Shaft Depth 750mm

Car Size: Width 710mm X Depth 820mm X Height 800mm
Shaft Width 1000mm X Shaft Depth 1000mm

Heated TrayStainlessIntercomExtra Shelf

Description

Floors
2 or 3 stop

Drive System
High efficiency traction drive

Power
400V 3 Phase or 240V 1 Phase

Read more...

Travel
2 Floor up to 4.0m (adjustable on site)
3 Floor up to 7.3m (adjustable on site)

Arrangements
Single or through entry (adjustable on site)
2 Floor up to 4 entrances
3 Floor up to 6 entrances

Structure
Galvanised steel structure

Car
Finished in Stainless Steel
Removable mid-shelf

Landing Doors
Vertical Bi-parting doors finished in Stainless Steel
2 hours fire-rated
Safety locks fitted

Control System
Microprocessor controller
Automatic push button landing stations

Electrical
Additional auxiliary main contactor
Phase failure reversal relay
Landing push stations complete with car position indicator, lift in use indicator and door open signal
Lift arrival buzzer
Anti-quick-reversal
Overtravel timer
Hand lamp
Light and socket within machine compartment
Wiring in loom form

General
Full set of warning notices
User manual
Comprehensive installer instructions
Comprehensive UK style layout drawings and wiring diagrams
Compliance with EC Machinery Regulations 2006/42/EC and EN81-3:2000
Carries the “CE” Mark

Optional Features
Lockable machine access door finished in Stainless Steel with 2 hours fire rating
Additional landing entrance assemblies with 2 hour fire-rated
Heated car floor
Additional car shelves
Machine room access ladder
Brushed aluminium roller shutter for car entrance fitted with electrical contact
Stainless steel bi-parting shutter for car entrance fitted with electrical contact
(Internal car dimensions and opening height will reduce when entrance protection is fitted)

Specification

Capacity

50kg & 100kg

Car Dimensions

710 × 820 × 800

Max Travel 2-stop (mm)

4000

Max Travel 3-stop (mm)

7300

Min Serving Height

700

Headroom

2600

Shaft

1000 x 1000

Speed

0.45 m/s
